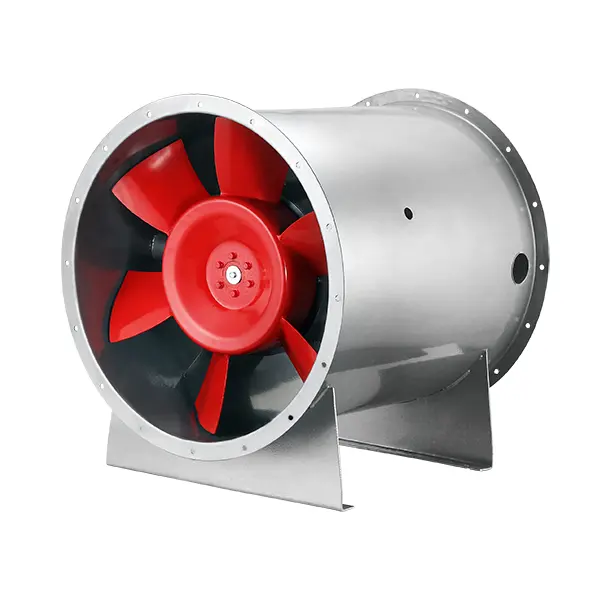

Custom HTF Fire Protection High-temperature Smoke Exhaust Dedicated Fan Exporter, Suppliers
Product Description
Technical Parameters
| Model | Speed (r/min) | Power (kW) | Traffic (m³/h) | Total Pressure (Pa) | Noise dB(A) |
|---|---|---|---|---|---|
| 3.5 | 2900 | 0.75 | 4225-3350 | 280-420 | ≤78 |
| 4 | 2900 | 1.5 | 5500-3800 | 300-450 | ≤79 |
| 4.5 | 2900 | 2.2 | 8500-6210 | 410-670 | ≤84 |
| 5 | 2900 | 3 | 9824-6817 | 510-752 | ≤86 |
| 5.5 | 2900 | 4 | 15200-10900 | 398-621 | ≤86 |
| 6 | 2900 | 5.5 | 16090-13197 | 510-760 | ≤86 |
| 6.5 | 1450 | 5.5 | 21500-15300 | 425-680 | ≤88 |
| 7 | 1450 | 7.5 | 24380-18908 | 610-728 | ≤88 |
| 8 | 1450 | 7.5 | 31421-26012 | 600-723 | ≤89 |
| 9 | 1450 | 11 | 33510-27613 | 562-840 | ≤89 |
| 10 | 1450 | 11 | 45697-35000 | 630-770 | ≤90 |
| 11 | 1450 | 15 | 51552-48500 | 580-690 | ≤92 |
| 12 | 960 | 18.5 | 62763-55651 | 624-740 | ≤93 |
| 13 | 960 | 18.5 | 74708-56031 | 600-807 | ≤94 |
| 15 | 960 | 22 | 93800-76041 | 623-819 | ≤95 |
| HTF-II Main Technical Parameters | |||||
| 5 | 2900 | 3/2.5 | 9824-6817 | 510-752 | ≤80 |
| 1450 | 3/2.5 | 4912-3410 | 127-188 | ≤75 | |
| 5.5 | 2900 | 4/3.3 | 15200-10900 | 398-621 | ≤86 |
| 1450 | 4/3.3 | 7600-5450 | 100-155 | ≤75 | |
| 6 | 2900 | 5.5/4.5 | 16090-13197 | 510-760 | ≤86 |
| 1450 | 5.5/4.5 | 8045-6599 | 127-190 | ≤75 | |
| 6.5 | 1450 | 5.5/4 | 21500-15300 | 425-680 | ≤88 |
| 960 | 5.5/4 | 14235-10130 | 187-298 | ≤80 | |
| 7 | 1450 | 8/6.5 | 24380-18908 | 610-728 | ≤88 |
| 960 | 8/6.5 | 16141-12518 | 267-319 | ≤80 | |
| 8 | 1450 | 8/6.5 | 31421-20012 | 600-723 | ≤89 |
| 960 | 8/6.5 | 20800-17222 | 263-317 | ≤80 | |
| 9 | 1450 | 11/9 | 33510-27513 | 562-840 | ≤90 |
| 960 | 11/9 | 22186-18216 | 246-368 | ≤81 | |
Product Overview
HTF series fire-fighting high-temperature fan is an optimized product developed to meet the rigorous ventilation needs in high-temperature environments. Featuring an efficient performance curve and stable operating characteristics, this fan effectively saves energy while reducing overall operating costs. Its robust motor and transmission system allow for superior performance across diverse applications including high-rise buildings, drying furnaces, underground garages, and tunnels.
Fast Start-Stop Design
Flexibly adjusts air volume to meet specific requirements, ensuring high-temperature smoke is rapidly discharged during emergencies.
Enhanced Safety
Acts as a critical component of fire protection systems, protecting personnel and property in the event of a fire.
Durable Construction
Built with high-temperature resistant materials and advanced manufacturing processes to ensure stability in extreme environments.
Easy Maintenance
Reasonable structural design ensures straightforward installation and daily maintenance for optimal working conditions.
The wide applicability of HTF series fans makes them an ideal choice for high-rise buildings, industrial facilities, and public spaces. Whether managing the intense heat of a drying furnace or providing essential ventilation for underground garages, HTF series fans provide excellent performance to create a safe and comfortable environment.
Frequently Asked Questions
What are the primary applications for HTF series fans?
HTF series fans are primarily used for fire-fighting smoke exhaust and high-temperature ventilation in high-rise buildings, tunnels, underground garages, and industrial drying furnaces.
How does the fan handle high-temperature smoke?
The fan is constructed with specialized high-temperature resistant materials and features a fast start-stop design that can quickly discharge smoke during a fire, maintaining clear exit routes.
Are these fans energy efficient?
Yes, HTF series fans are designed with optimized performance curves that provide high efficiency, which helps in saving energy and reducing long-term operational costs.
Is the installation process complicated?
No, the fan features a reasonable structural design specifically engineered for ease of installation and maintenance, allowing for simple daily checks and servicing.
Can the air volume be adjusted?
Yes, the design allows for flexible adjustment of air volume based on different usage requirements and specific environmental challenges.
What makes the HTF series reliable in extreme conditions?
Reliability is ensured through the use of advanced manufacturing processes, heavy-duty motors, and a robust transmission system designed for long-term operation in extreme environments.
