Custom SF AxialFlow Fan: Powerful and Efficient Exporters, Manufacturers

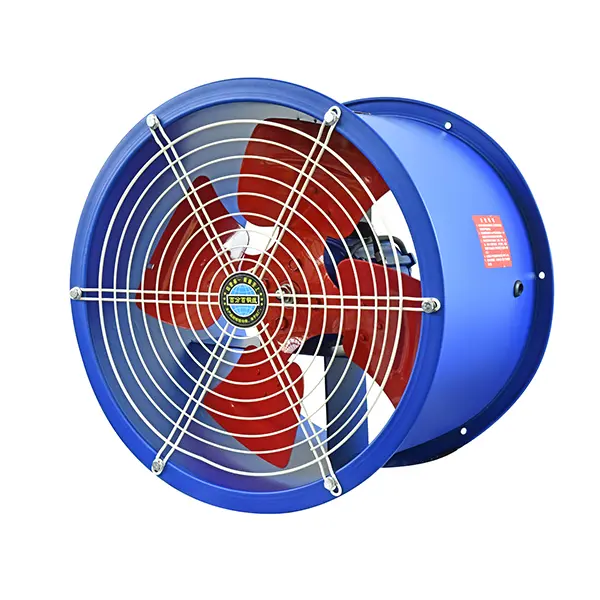

Ventilator of this series is constituted of single phase capacitance forced asynchr-onous motor with external rotoror three phase asynchronous motor double-flange cylinder shell,network frame and blade

It boasts the characteristics of stong wind,feeble vibration,low noise and reliable performance,etc

This ventilator is mainly used forventilation and heat elimination in industries including ground servomechanism,large scale electronic equipment,medical treatment faclities,computer,office autom-ation,welding mechine where strong windis neede,It si can also work for ventilation,air exchanging and purification on buildings and factorie.

Send Inquiry

Product Description

L Product Parameters

Model	Power (kW-P)	Speed (r/min)	Flow Traffic (m³/h)	Total Pressure (Pa)	Voltage (V)
2	0.12-2	2800	1300	140	220/380
2	0.06-4	1450	600	23	220/380
2.5	0.25-2	2800	2100	215	220/380
2.5	0.09-4	1450	1000	35	220/380
3	0.37-2	2800	3000	230	220/380
3	0.12-4	1450	2000	59	220/380
3.5	0.75-2	2800	6000	260	220/380
3.5	0.25-4	1450	3000	78	220/380
4	1.5-2	2800	11000	320	220/380
4	0.55-4	1450	5300	167	220/380
5	0.75-4	1450	9300	200	220/380
6	2.2-4	1450	18700	300	220/380
7	3-4	1450	23000	350	220/380
8	4-4	1450	25000	380	220/380
9	5.5-4	1450	33000	400	380
10	7.5-4	1450	48000	400	380

F Frequently Asked Questions

How do I choose the right model based on the parameters?

Selection should be based on your required air flow (Traffic m³/h) and Total Pressure (Pa). High-speed models (2800 r/min) offer higher pressure but may differ in noise levels compared to 1450 r/min models.

What are the available voltage options for these units?

Most models support both 220V and 380V dual-voltage configurations. However, larger models (Model 9 and 10) are specifically designed for 380V industrial power supplies.

What does the "kW-P" value represent in the power column?

This indicates the motor power rating in kilowatts and the pole count of the motor, which directly relates to the operating speed and torque efficiency of the fan.

Are these industrial fans suitable for continuous 24/7 operation?

Yes, these units are engineered with high-grade components designed to withstand the rigors of industrial environments and sustained operation periods.

Can the airflow direction be customized for these models?

Standard models follow the specified flow traffic direction. For specific installation needs regarding rotation or outlet angles, please refer to the technical dimension sheets provided during procurement.

Is maintenance required for the high-speed 2800 r/min models?

Regular inspection of bearings and cleaning of the fan blades is recommended every 3-6 months to ensure optimal performance and longevity, especially in dusty environments.
