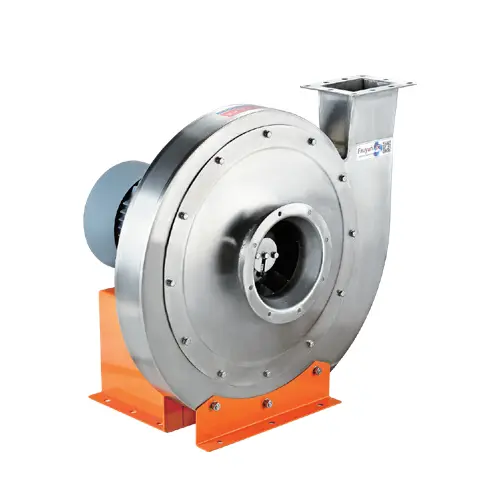

Custom 9-19A Stainless Steel(304 Material)High Pressure Centrifugal Fan Factory, Supplier
Product Description
📊
Technical Parameters
| Model | Speed (r/min) | Power (kW-P) | Traffic (m³/h) | Total Pressure (Pa) |
|---|---|---|---|---|
| 3.15A | 2900 | 0.75-2 | 402-545 | 2223-2262 |
| 2900 | 1.1-2 | 617-832 | 2231-2017 | |
| 3.55A | 2900 | 1.5-2 | 560-760 | 2545-2590 |
| 2900 | 2.2-2 | 860-1160 | 2554-2310 | |
| 4A | 2900 | 2.2-2 | 824-1264 | 3584-3597 |
| 2900 | 3-2 | 1410-1704 | 3507-3253 | |
| 4.5A | 2900 | 4-2 | 1174-2062 | 4603-4447 |
| 2900 | 5.5-2 | 2281-2504 | 4297-4112 |
| Model | Speed (r/min) | Power (kW-P) | Traffic (m³/h) | Total Pressure (Pa) |
|---|---|---|---|---|
| 5A | 2900 | 7.5-2 | 1610-2844 | 5697-5517 |
| 2900 | 11-2 | 3166-3488 | 5323-5080 | |
| 5.6A | 2900 | 11-2 | 2622-3619 | 7182-7109 |
| 2900 | 18.5-2 | 3996-4901 | 6954-6400 | |
| 6.3A | 2900 | 18.5-2 | 3220-5153 | 9149-9055 |
| 2900 | 30-2 | 5690-6978 | 8857-8148 | |
| 7.1A | 2900 | 37-2 | 4610-7376 | 11717-11596 |
| 2900 | 55-2 | 8144-9988 | 11340-10426 |
🚀
Product Overview
9-19A stainless steel high pressure centrifugal fan is a high efficiency ventilation equipment that performs well among similar products at home and abroad. This fan is known for its high efficiency, low noise, flat performance curve and wide efficiency range, making it an ideal choice for many industrial applications. It is designed to meet the needs of high pressure forced ventilation and material transportation, and is widely used in high temperature environments such as forging furnaces.
Wide Application: The fan can effectively convey air and non-corrosive, non-natural and non-viscous gases, and is suitable for a variety of industrial occasions.
Temperature Resistance: The temperature of its working medium generally does not exceed 50°C, and can reach 80°C under special circumstances.
Dust Handling: The fan can handle media with a dust content of no more than 150mg/m³, ensuring stable performance under high-load working conditions.
The high efficiency of the 9-19A fan enables it to completely replace the low-flow 8-18 and 9-27 fans, providing a better ventilation solution. Its stainless steel material not only enhances the durability and corrosion resistance of the equipment, but also enables the fan to maintain good working condition in harsh environments.
In addition, the design of the 9-19A fan takes into account the convenience of installation and maintenance for users. It has a compact structure and is easy to install in a small space. Users can easily perform daily maintenance to ensure that the equipment is always in the best working condition. In short, the 9-19A stainless steel high-pressure centrifugal fan is a high-quality ventilation equipment that combines high efficiency, durability and low noise.
Frequently Asked Questions
What are the primary uses of the 9-19A high-pressure centrifugal fan?
It is primarily used for high-pressure forced ventilation and material transportation, especially in industrial environments like forging furnaces and other high-temperature applications.
What is the maximum medium temperature the fan can handle?
The standard working medium temperature is generally below 50°C, but it can handle up to 80°C under specific operational conditions.
Can this fan operate in dusty industrial environments?
Yes, the 9-19A fan is designed to handle media with a dust content of up to 150mg/m³ while maintaining stable performance.
What makes the 9-19A model superior to older versions like 8-18 or 9-27?
The 9-19A offers higher efficiency, a flatter performance curve, and a wider efficiency range, making it a more effective and energy-saving replacement for low-flow models.
Is the fan suitable for corrosive environments?
Yes, being made of stainless steel, the fan provides enhanced durability and excellent corrosion resistance, allowing it to function reliably in harsh industrial settings.
Is the installation process complicated?
No, the fan features a compact design specifically intended for easy installation in small spaces and simplified daily maintenance.
