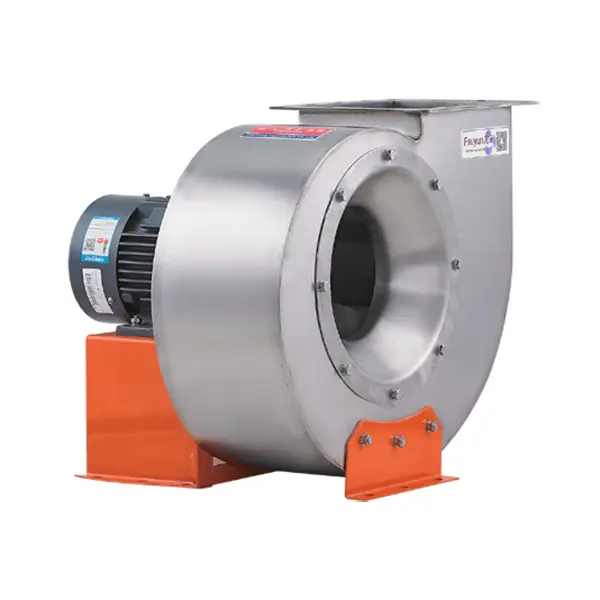

ODM 4-72A Stainless Steel Centrifugal Fan Company, Manufacturers
Product Description
⚙️
Technical Parameters
| Model | Speed (r/min) | Power (kW-P) | Traffic (m³/h) | Total Pressure (Pa) |
|---|---|---|---|---|
| 2.5A | 2900 | 0.75-2 | 800-1650 | 790-485 |
| 2.8A | 2900 | 1.5-2 | 1131-2356 | 994-606 |
| 3.2A | 2900 | 2.2-2 | 1688-3517 | 1300-792 |
| 1450 | 1.1-4 | 844-1758 | 324-198 | |
| 3.6A | 2900 | 3-2 | 2664-5268 | 1578-989 |
| 1450 | 1.1-4 | 1332-2634 | 393-247 | |
| 4A | 2900 | 5.5-2 | 4012-7419 | 2014-1320 |
| 1450 | 1.1-4 | 2006-3709 | 501-329 | |
| 4.5A | 2900 | 7.5-2 | 5712-10562 | 2554-1673 |
| 1450 | 1.1-4 | 2856-5281 | 634-416 | |
| 5A | 2900 | 15-2 | 7728-15455 | 3187-2019 |
| 1450 | 2.2-4 | 3864-7728 | 790-502 | |
| 5.6A | 2900 | 22-2 | 10122-25736 | 4152-2330 |
| 1450 | 3-4 | 7062-9885 | 957-759 | |
| 6A | 1450 | 4-4 | 6677-13353 | 1139-724 |
| 6.3A | 1450 | 5.5-4 | 10110-15810 | 1247-968 |
| 7.1A | 1450 | 11-4 | 12676-20513 | 1572-1168 |
| 960 | 3-6 | 8392-13581 | 689-512 |
📘
Product Overview
The 4-72A stainless steel centrifugal fan is a high-efficiency ventilation solution designed for superior performance. It is widely utilized across various industries including environmental protection, coating systems, food processing, pharmaceuticals, drying equipment, and ceramic machinery, demonstrating exceptional adaptability and reliability.
✓
Application Areas: Ideal for large factories, civil buildings, shopping malls, power plants, and hot air circulation systems.
✓
Media Compatibility: Designed for non-flammable, non-explosive, and non-corrosive gas media.
✓
Temperature Resistance: Operating temperature range from 200℃ to 500℃.
✓
Dust Constraints: Air dust particles must not exceed 150mg/m³ to protect the impeller.
Its efficient design and durable stainless steel construction ensure stable performance during long-term operation. This ventilation equipment helps optimize production efficiency and improves the comfort of industrial working environments.
💬
Frequently Asked Questions
What industries use the 4-72A stainless steel centrifugal fan?
It is widely used in environmental protection, food machinery, pharmaceutical machinery, drying equipment, and the printing industry.
What type of gas can this fan transport?
The fan is designed to transport non-flammable, non-explosive, and non-corrosive gas media.
Are there restrictions on dust content in the air?
Yes, to avoid damage to the impeller, the dust particle content must not exceed 150mg/m³.
What is the operating temperature range?
The recommended operating temperature for the 4-72A fan ranges from 200℃ up to 500℃.
Is the fan suitable for handling sticky substances?
No, the 4-72A centrifugal fan is not suitable for handling air that contains sticky substances.
Can this fan be used in civil buildings?
Yes, it is suitable for ventilation in large civil buildings, shopping malls, and air handling equipment.
